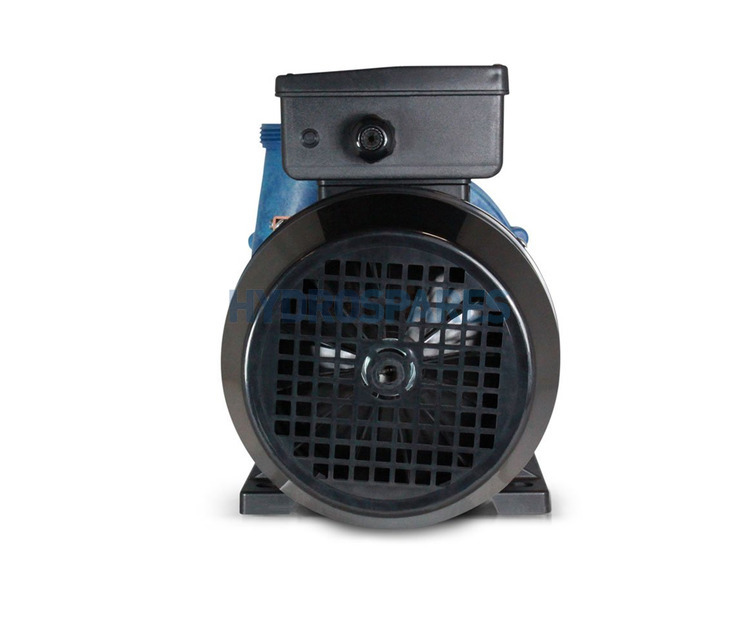

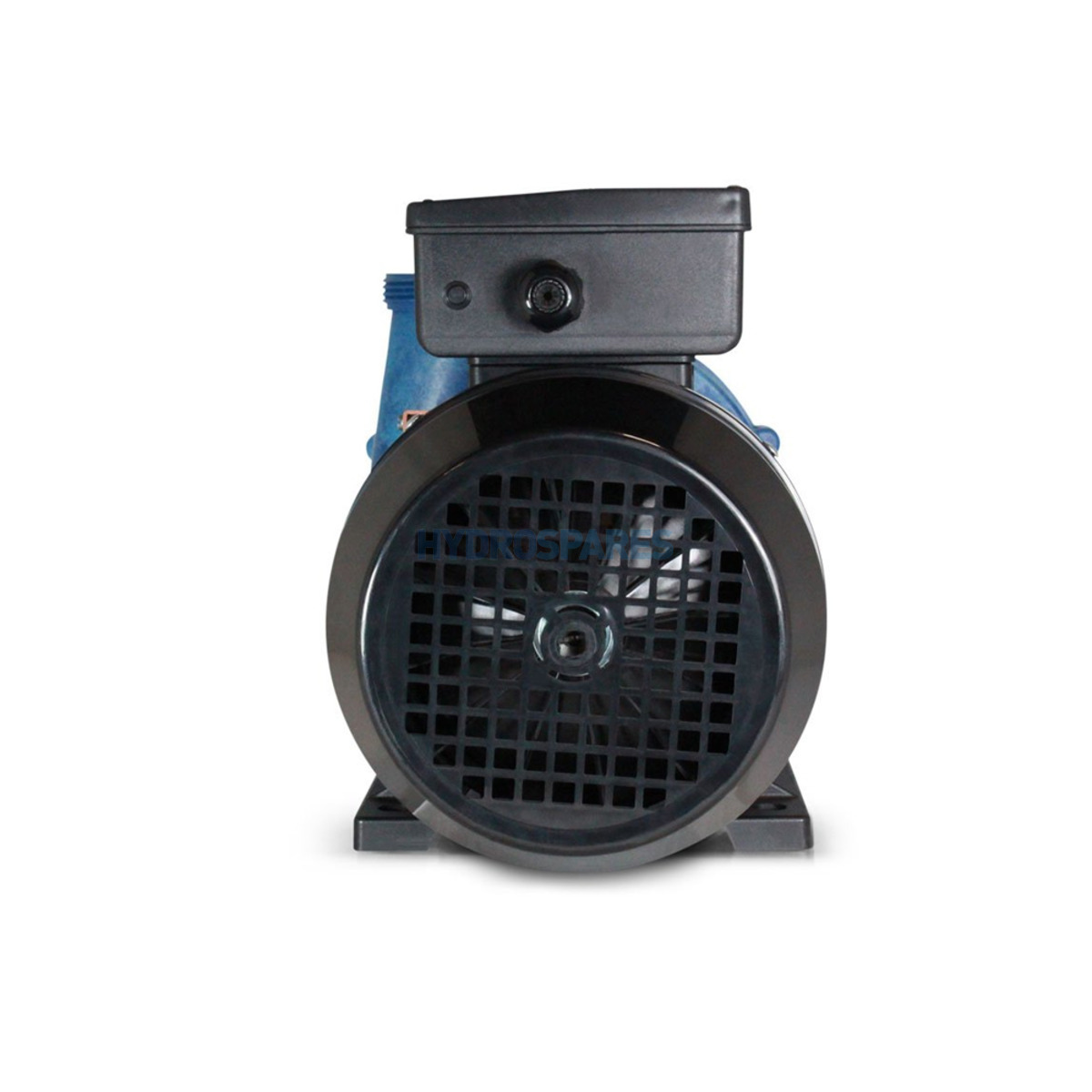

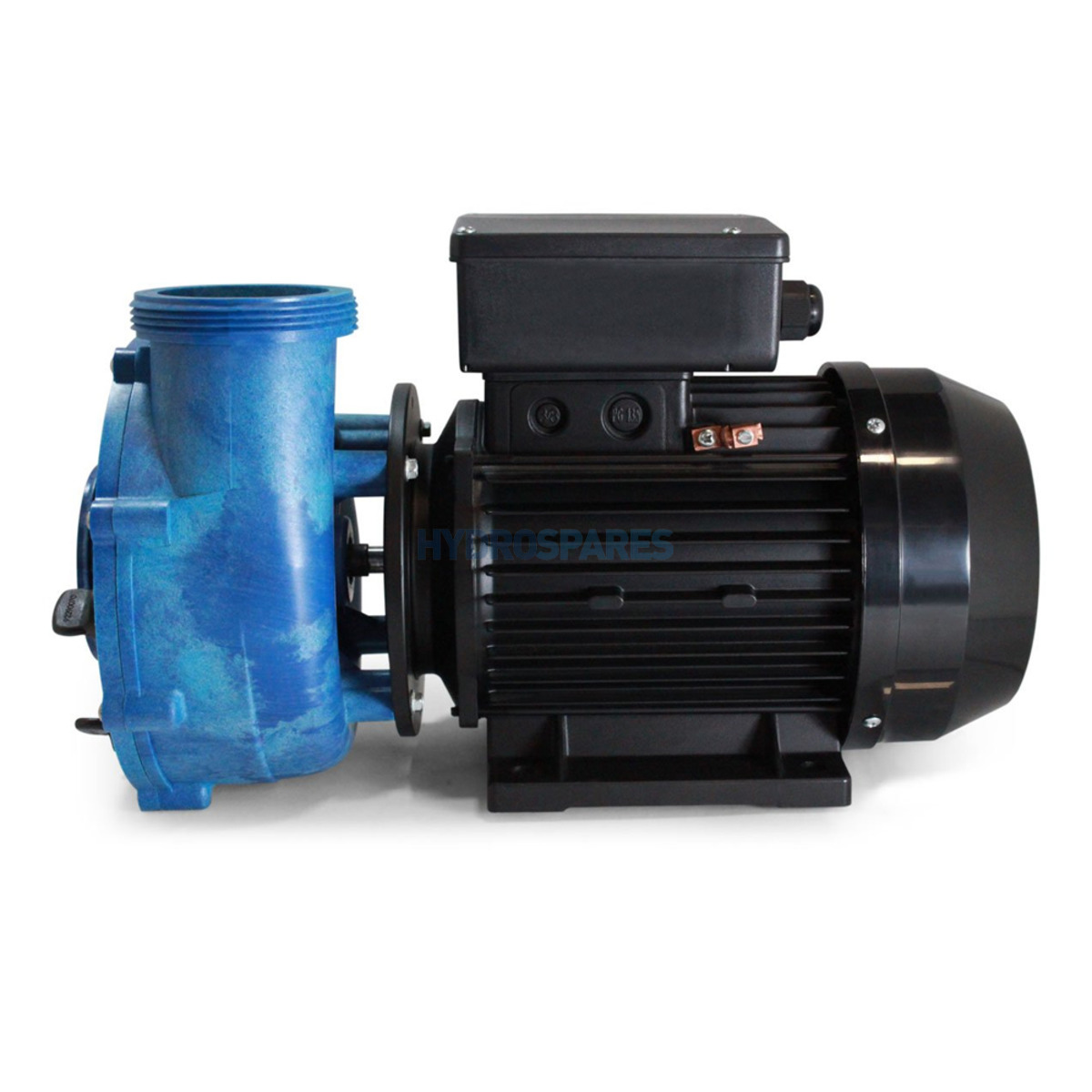

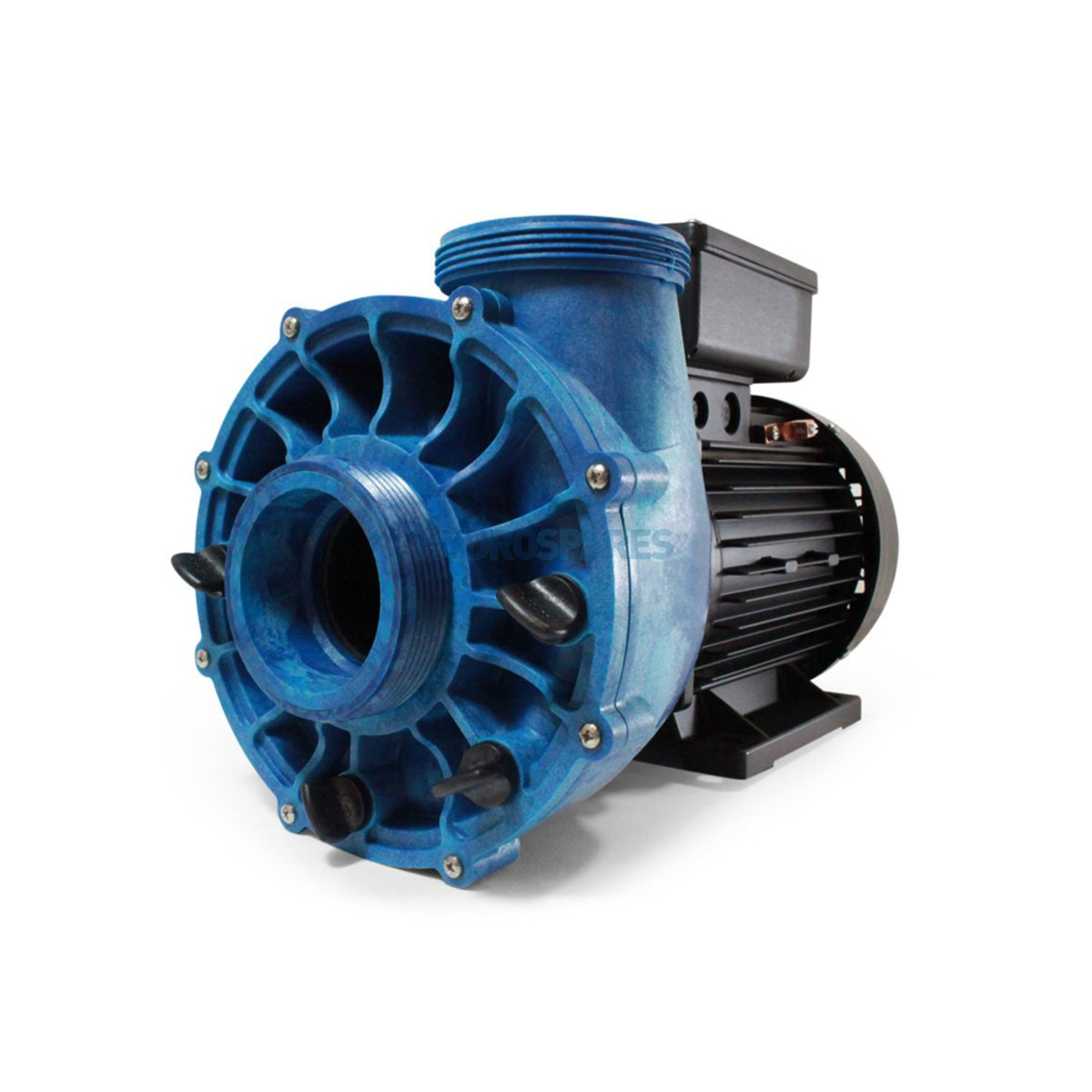

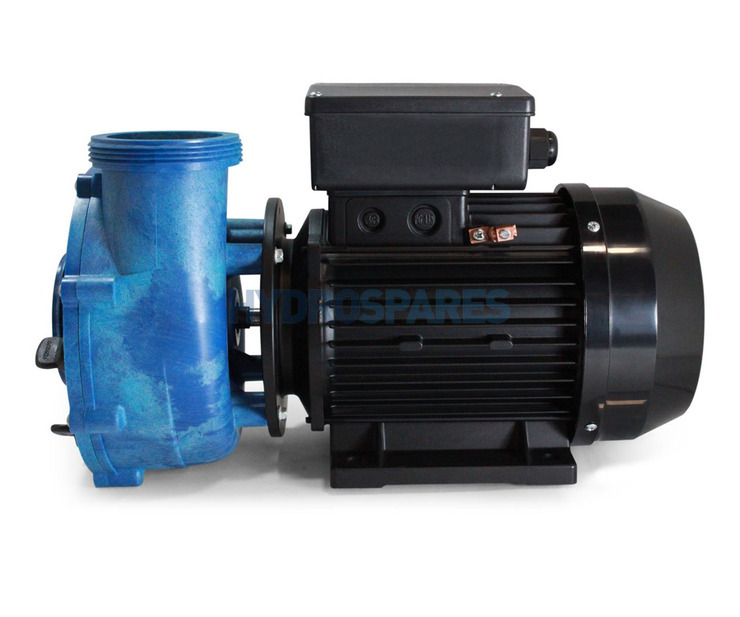

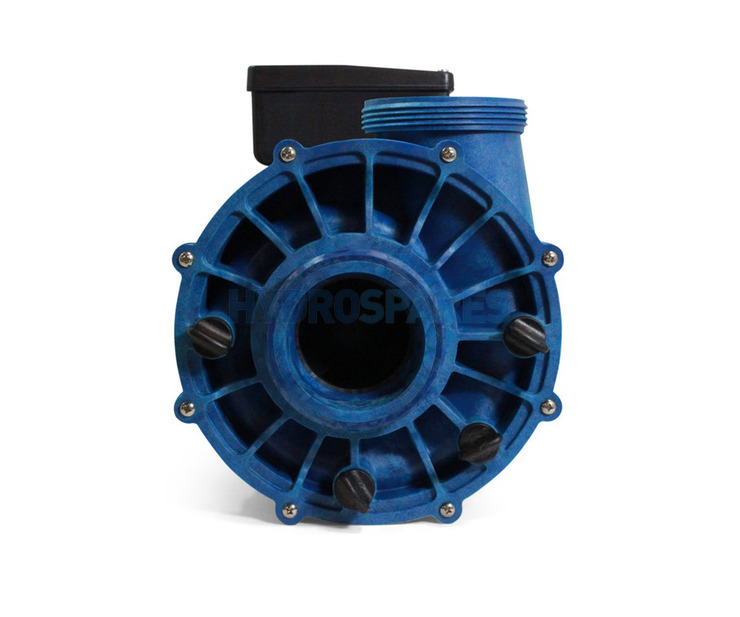

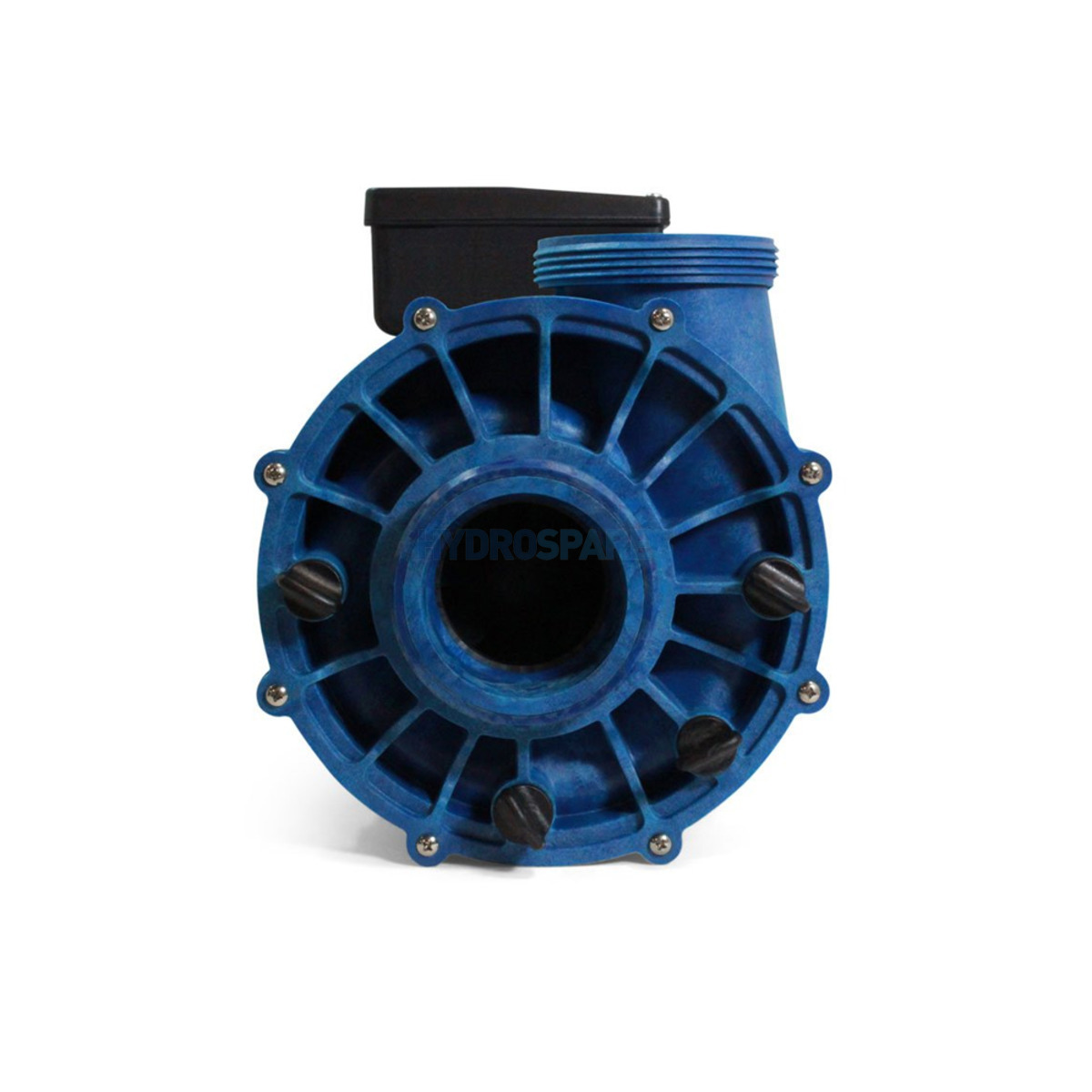

Gecko XP3 Spa Pump - 3HP - 1 Speed

93mm Centre Suction x 93mm Side Discharge

Extended 1 Year Warranty

In addition to the manufacturers standard warranty (usually 1 year) we also offer the opportunity for you to extend this warranty by a further 1 year for a one off fee. This can be arranged at the point of purchase or within a limited time afterwards.
An extended warranty is an easy way to protect your purchase, against any manufacturing defects causing breakdown. You will benefit from free repairs for the term of the warranty period & If your equipment can't be repaired then we will replace it free of charge.(A delivery surcharge may apply for non UK mainland addresses)
This warranty and the standard manufacturer’s warranty does not cover general wear and tear, abuse or misuse or incorrect installation.
If you would like any further information on our extended warranty scheme please call our Hydrospares team on 01326 371 488 OR email us at info@hydrospares.co.uk

LID: 5213
Flo-Master XP3
Single Speed
3HP
2 ½" x 2 ½" (93mm x 93mm)
£600.71 Inc VAT
( £750.88)
PMP-8742
08243000-6041
3 In StockSame day dispatch if ordered by 14:00
Fast UK Delivery
Extended Warranty Available
Extended Warranty Available
Add your 1 year warranty in the basket
Gecko XP3 Spa Pump - 3HP - 1 Speed
£600.71
RRP £750.88

The Power Behind the Performance of your Spa

The Flo-Master XP3 pump is designed for larger spas with multiple jets requiring increased flow while providing optimal performance through efficiency rather than brute force.

Ideal for Swim Spas and High-flow Requirements

  • Booster Jet Pumps
  • Single or Dual-speed
  • 2 ½ HP or 3 HP (Single Speed Only)
  • Flow Rate up to 1325 LPM
  • 2 ½" Intake and Discharge

Easily Customisable to Fit your Needs

  • High Flow Rate
  • Wet End can be Orientated in 4 Positions
  • Fits all Requirements
  • Drain Plug Options
  • IPx5 Approved
  • TUV & CE Certified

Comes with 2 ½" intake and discharge fittings.

Model Information
Dimensions L x W x H 380x206x228
HEAD - H max 9.4 / 3m
FLOW - Q max up to 925 L/min
Type / Speed 1 Speed
Model XP3
Horsepower 3.0 Hp
MPN 08243000-6041
Motor Information
Voltage / Frequency 230V / 50Hz
Amp Draw 9.1 A
Power - P1 2.1 kW
RPM 2840
Capacitor Size(s) 65 µF
Wet End Information
Union Connection Ref 2.5 " (Inch)
Configuration Center Suction, Side Discharge
Part No. 91041931-000
Connection Diameter 93 x 93mm
Thread Type Male - Buttress
Impeller Part No. 91698402
Impeller Diameter 92 mm
Shaft Seal Type PS-200
Spare Parts Available Yes - See Spare Parts List
Diagram
Spare Part Diagram
More Info

Pump Specifications

Dimensions

  • 380 x 206 x 228 (mm)

Summary

  • Frame: 48
  • Discharge: Side
  • Inlet & Outlet: 2 ½"
  • Seals: Viton
  • HP: 3
  • Speed: 1
Spares
COMPARE Gecko Flo-Master 48F/ 56F Wet End - 2.5HP - 2 ½" x 2 ½"
Gecko Flo-Master 48F/ 56F Wet End - 2.5HP - 2 ½" x 2 ½"
For Use with Aqua-flo XP3
2 In StockSame day dispatch if ordered by 14:00
QF: WET-5477
£109.99
COMPARE Gecko Flo-Master 48F/ 56F Wet End - 3HP - 2 ½" x 2 ½"
Gecko Flo-Master 48F/ 56F Wet End - 3HP - 2 ½" x 2 ½"
For Use with Aqua-flo XP3
Special Order ItemLead time to be confirmed
QF: WET-5478
£109.99
COMPARE Gecko Flo-Master 48F/ 56F Wet End - 4HP - 2 ½" x 2 ½"
Gecko Flo-Master 48F/ 56F Wet End - 4HP - 2 ½" x 2 ½"
For Use with Aqua-flo XP3
DiscontinuedPlease see alternatives
QF: WET-5480
£109.99
COMPARE HS PRO Shaft Seal PS-200
HS PRO Shaft Seal PS-200
5/8" / 15.8mm Shafts
18 In StockSame day dispatch if ordered by 14:00
QF: PMS-3206
£8.99
RRP: £9.91
COMPARE Gecko Shaft Seal - PS-200
Gecko Shaft Seal - PS-200
Fits Multiple Aqua-Flo Pumps
Out of Stock - Available to Pre-Order25 on order - estimated 10/12/2024
QF: PMS-8121
£17.49
RRP: £22.75
COMPARE Hydrospares Pump Motor Bolt - Pack of 4
Hydrospares Pump Motor Bolt - Pack of 4
For 56 Frame Wet Ends
64 In StockSame day dispatch if ordered by 14:00
QF: BLT-3384-4PK
£2.00
