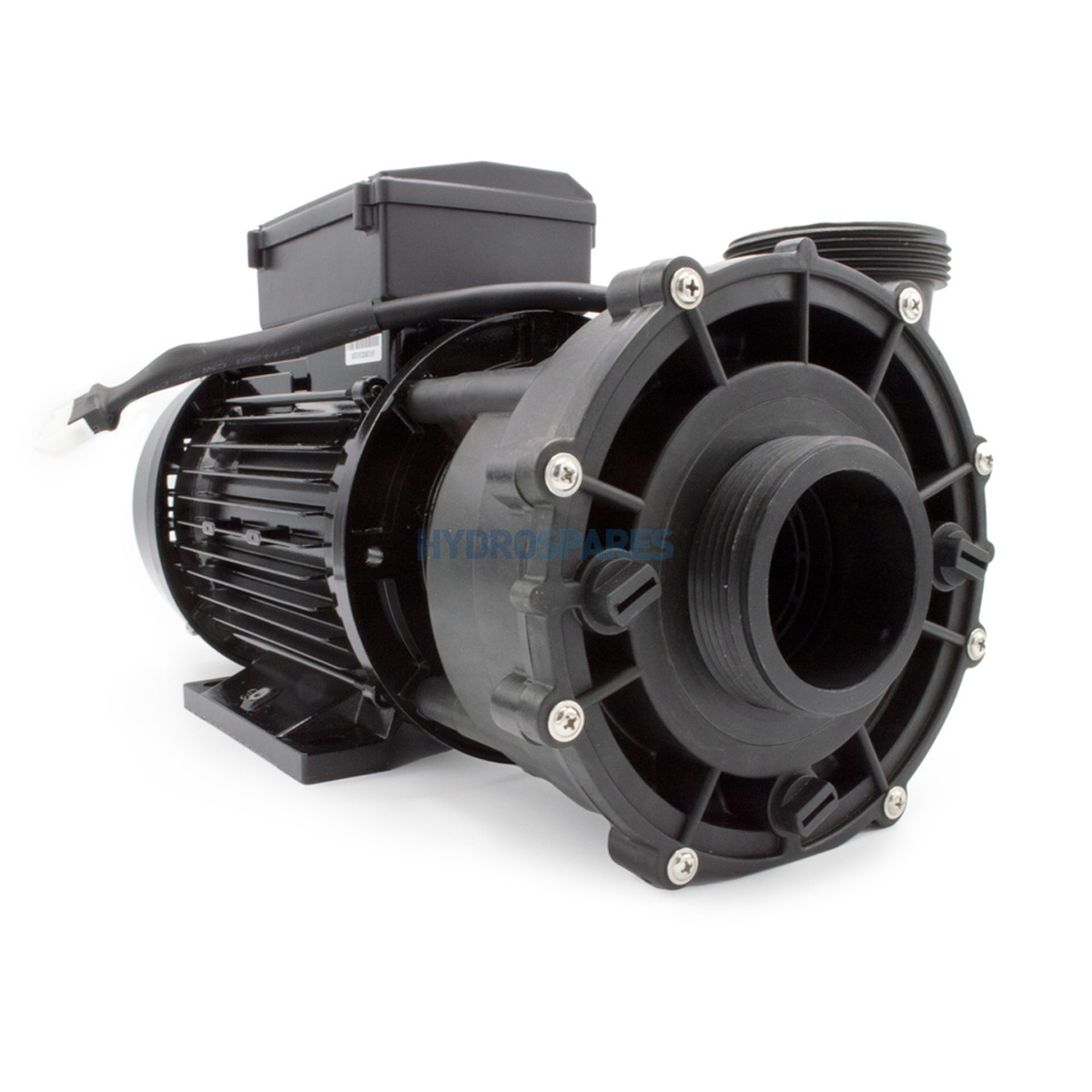

Jacuzzi Spa 2HP Two Speed - LX Alternative

Direct Replacement

Extended 1 Year Warranty

In addition to the manufacturers standard warranty (usually 1 year) we also offer the opportunity for you to extend this warranty by a further 1 year for a one off fee. This can be arranged at the point of purchase or within a limited time afterwards.
An extended warranty is an easy way to protect your purchase, against any manufacturing defects causing breakdown. You will benefit from free repairs for the term of the warranty period & If your equipment can't be repaired then we will replace it free of charge.(A delivery surcharge may apply for non UK mainland addresses)
This warranty and the standard manufacturer’s warranty does not cover general wear and tear, abuse or misuse or incorrect installation.
If you would like any further information on our extended warranty scheme please call our Hydrospares team on 01326 371 488 OR email us at info@hydrospares.co.uk

LID: 72424
Jacuzzi Spa Alternative
Two Speed
2HP
2" x 2" (79mm x 79mm)
£243.36 Inc VAT
( £367.62)
PMP-5760
WP200-II
113 In StockSame day dispatch if ordered by 14:00
Fast UK Delivery
Extended Warranty Available
Extended Warranty Available
Add your 1 year warranty in the basket
Jacuzzi Spa 2HP Two Speed - LX Alternative
£243.36
RRP £367.62

LX WP200 2HP 2 Speed is a great alternative to JACUZZI SPAS Pumps

Replacement for the following Jacuzzi models:

  • 6500-319
  • 6500-299
  • 6500-291
  • 6500-899

High Speed for Massage, Low Speed for Filter / Cycle

The LX WP series hot tub pumps are one of the most common two speed pumps used on Chinese manufactured hot tubs and swim spas as well as many other newer hot tub and swim spa brands appearing on the European market.

The WP series of pumps will often serve as a circulation and booster pump, the low speed will circulate to heat and run filter cycles while the high speed will deliver a higher volume of water through hot tub jets.

If you require a 1 speed pump from LX this would be the LP pump series. Please see our other listings for these.

The LP Series is also ideal for use with

  • Weak corrosive liquids such as weak acids (without solid granules) Liquid temperature: +5-60
  • For circulating fluids for use in workshops for cooling.

This is a direct replacement for LX WP200 Two Speed Spa Pump with 2" connections manufactured AFTER / POST 2008 (See IMPORTANT NOTE below)

The WP series is also the pump of choice for both Jacuzzi and Sundance spas, replacing the discontinued Theramax pumps and can also be used to replace similar higher priced pumps from other manufactures at a more economical price.

IMPORTANT NOTE: 2008 LP & WP pumps and wet ends are manufactured with a shorter suction (approx. 15mm) and discharge port (approx. 30mm). You may find on some hot tubs with very rigid plumbing that the newer versions will not line up with pipework. The wet end faceplate moulding is different and they are also "open" on the rear of the wet end casing as opposed to the pre 08 wet ends which are encased. SEE IMAGES FOR REFERENCE.

Also a great alternative to the RWA 2HP 2 Speed

Model Information
Dimensions L x W x H 445x235x305mm
HEAD - H max 14 / 3.5m
FLOW - Q max 620 / 280lpm
Type / Speed 2 Speed
Model WP
Horsepower 2.5 Hp
MPN WP200-II
Motor Information
Amp Draw 7 / 2 A
Power - P1 1.5 / 0.35 kW
RPM 2900 / 1450
Capacitor Size(s) 30 µF
Wet End Information
Impeller Part No. B351-21
Impeller Diameter 107mm
Impeller Vane Gap 11.5mm
Shaft Seal Type Type A
Spare Parts Available Yes - See Spare Parts List
Dimensions
Spare Part Diagram
