Waterway 48F Spa Pump (E Series) - 1 ½HP - 1 Speed

63mm Centre Suction x 63mm Centre Discharge

Extended 1 Year Warranty

In addition to the manufacturers standard warranty (usually 1 year) we also offer the opportunity for you to extend this warranty by a further 1 year for a one off fee. This can be arranged at the point of purchase or within a limited time afterwards.
An extended warranty is an easy way to protect your purchase, against any manufacturing defects causing breakdown. You will benefit from free repairs for the term of the warranty period & If your equipment can't be repaired then we will replace it free of charge.(A delivery surcharge may apply for non UK mainland addresses)
This warranty and the standard manufacturer’s warranty does not cover general wear and tear, abuse or misuse or incorrect installation.
If you would like any further information on our extended warranty scheme please call our Hydrospares team on 01326 371 488 OR email us at info@hydrospares.co.uk

LID: 2358
48 Frame
Single Speed
1 ½HP
1 ½" x 1 ½" (63mm x 63mm)
£286.13 Inc VAT
( £376.49)
PMP-4516
3410830-15
Special Order ItemLead time to be confirmed
Contact for lead time
Fast UK Delivery

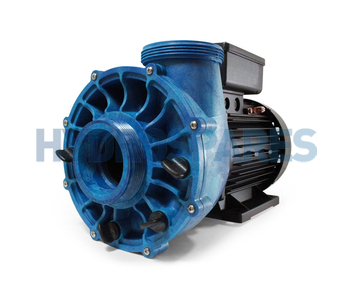

Waterway 48F Spa Pump (E Series) - 1 ½HP - 1 Speed
£286.13
RRP £376.49

High Performance and Cost Effective

The Waterway CD (centre discharge) E-Series pumps are designed especially for hot tubs and spas.

Note the discharge port sits in-line with the suction port as opposed to the more common side discharge wet ends.

This is not a common pump, but can still be found in a great many hot tubs and spas. They have been known to have red coloured wet ends as well.

Hi-performance Waterway wet ends are driven by quality E.M.G motors that by design, dissipate heat quicker and give lower running temperatures.

The compact 48 frame pumps allow for installations into tight spots or in spa cabinets where space is limited and that a larger 56 frame pump simply won't fit.

Waterway pumps are great alternatives to more expensive brands as well. Their wet end shape and dimensions mean they can replace most hot tub pumps out there from the likes of Aqua-flo, Century Laser, AO Smith, Vico, Sta-Rite, Emerson just to name a few. Usually with little or no modifications required.

Please Note:

The E Series pumps are supplied without a cable. We recommend re-using the cable from your old pump to ensure correct fitment to your spa pack.

Model Information
Dimensions L x W x H 370 x 175 x 200mm
HEAD - H max 15m
FLOW - Q max 138gpm
Type / Speed 1 Speed
Model E Series
Horsepower 1.5 Hp
MPN 3410830-15
Motor Information
Voltage / Frequency 230V / 50Hz
Amp Draw 6.0 A
Power - P1 1.40 kW
RPM 2620
Capacitor Size(s) 30 µF
Frame Size 48F
Cord / Plug Type Bare Wire
Wet End Information
Union Connection Ref 1.5 " (Inch)
Configuration Center Suction, Center Discharge
Part No. 310-8230
Connection Diameter 63mm
Thread Type Male - Buttress
Impeller Part No. 310-5140
Impeller Diameter 97mm
Impeller Vane Gap 13mm
Impeller Dot Colour Yellow
Shaft Seal Type PS-1000
Spare Parts Available Yes - See Spare Parts List
More Info

Pump Specifications

Dimensions

  • 370 x 175 x 200 (mm)

Summary

  • Frame: 48
  • Power: 1HP
  • Max. Head: 15m
  • Max. Flow: 138GPM
Spares
COMPARE Waterway 48F Wet End - 1.5HP - 1 ½" x 1 ½"
Waterway 48F Wet End - 1.5HP - 1 ½" x 1 ½"
For Use with Centre Discharge Pump
2 In StockSame day dispatch if ordered by 14:00
QF: WET-2699
£98.88
RRP: £131.84
COMPARE Waterway Shaft Seal - PS-1000
Waterway Shaft Seal - PS-1000
Fits Executive, Viper, Hi-Flo, Spa-FLo, E series, Iron Might
Special Order ItemLead time to be confirmed
QF: PMS-0127
£21.99
RRP: £28.21
COMPARE Waterway Slinger Washer
Waterway Slinger Washer
For Use with Hi-Flo / Centre Discharge / Executive
19 In StockSame day dispatch if ordered by 14:00
QF: SLG-3271
£1.49
RRP: £1.99
COMPARE Waterway Standard Series Centre Discharge Impeller
Waterway Standard Series Centre Discharge Impeller
1 ½Hp
2 In StockSame day dispatch if ordered by 14:00
QF: IMP-3264
£24.49
RRP: £35.15
COMPARE Waterway EMG Motor Fan Cover
Waterway EMG Motor Fan Cover
48 Frame
28 In StockSame day dispatch if ordered by 14:00
QF: FAN-4896
£4.99
RRP: £7.18
COMPARE Waterway O-Ring - 140mm
Waterway O-Ring - 140mm
Centre Discharge Volute Faceplate
6 In StockSame day dispatch if ordered by 14:00
QF: 3262
£5.70
RRP: £6.33
COMPARE Hydrospares Pump Motor Bolt - 4 Pack
Hydrospares Pump Motor Bolt - 4 Pack
For 48 Frame Wet Ends
158 In StockSame day dispatch if ordered by 14:00
QF: BLT-3383-4PK
£2.00
COMPARE HS PRO - Motor Run Capacitor - 30µf
HS PRO - Motor Run Capacitor - 30µf
Flying Lead
10 In StockSame day dispatch if ordered by 14:00
QF: CAP-8469
£14.34
RRP: £19.12
