HydroQuip Double Barrel Heater - 1.5KW

Laing Triple Bend Replacement

LID: 4540

View full range

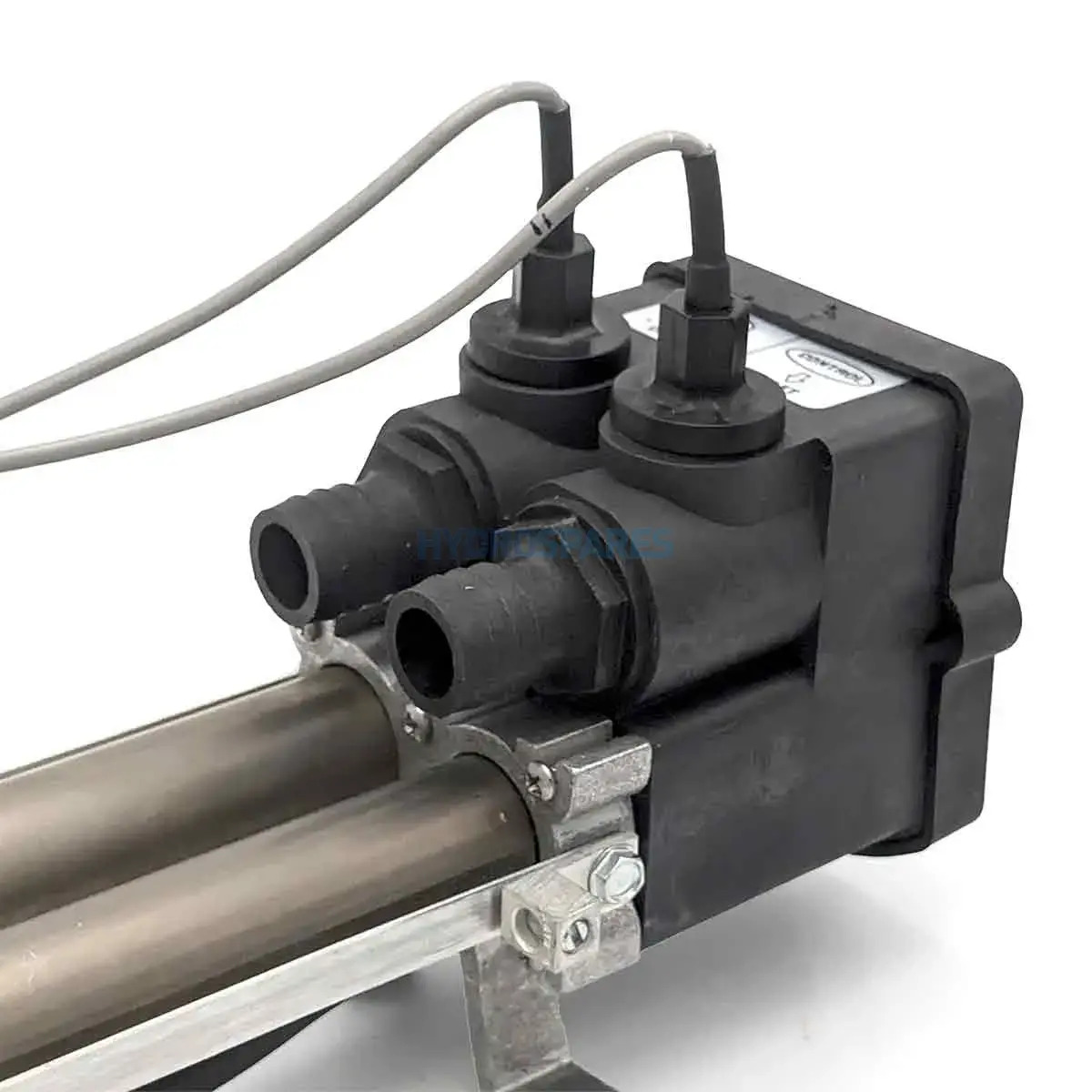

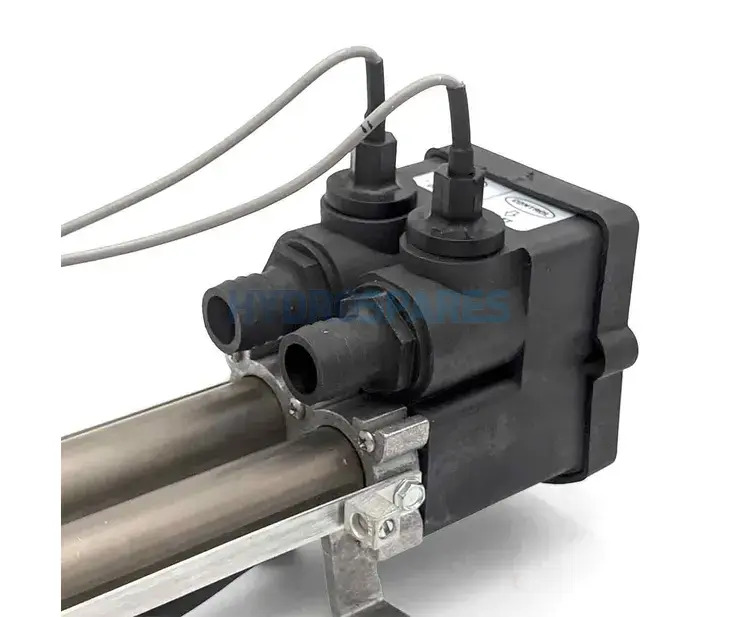

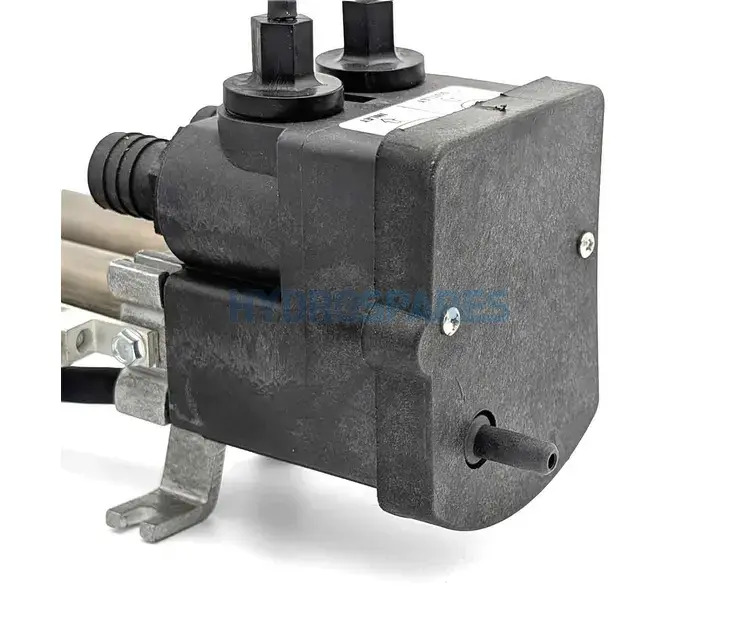

Double Barrel Heater Assembly

1.5kW

Titanium Element

3/4 Barb

£400.70 Inc VAT

(RRP: £568.36)

Have a Trade account? Login for trade pricing

SKU: HTR-8110

MPN: 26-C3182-1S

4 In StockSame day dispatch if ordered by 14:00

QTY

Compare Product Chat with us on Whatsapp

1 Review

Fast UK Delivery

Next working day from £9.00 (order by 2pm) Standard from £4.50

Trade Prices Available

Request your trade account

This is Generic replacement for many versions of the Heater used by / on Watkins, Hot Springs,No Fault, Hot Spot, Tiger River, Caldera spas.

Also Replaces the Laing (Paper-clip / Trombone -Tri-Bend heater)

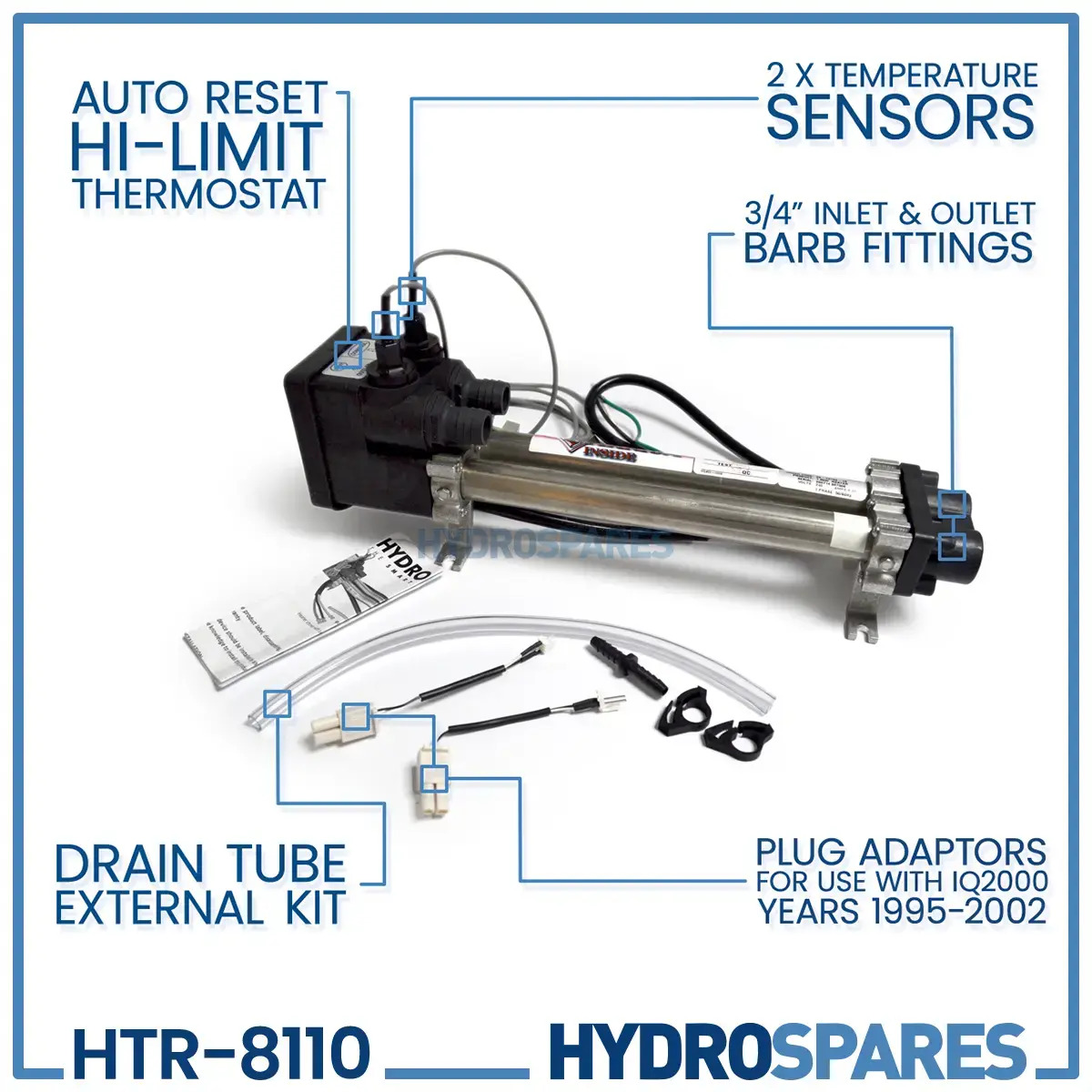

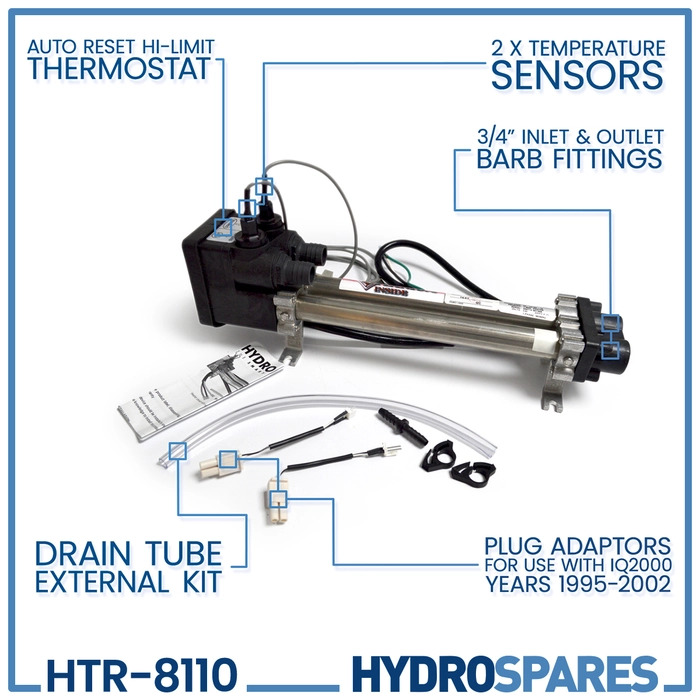

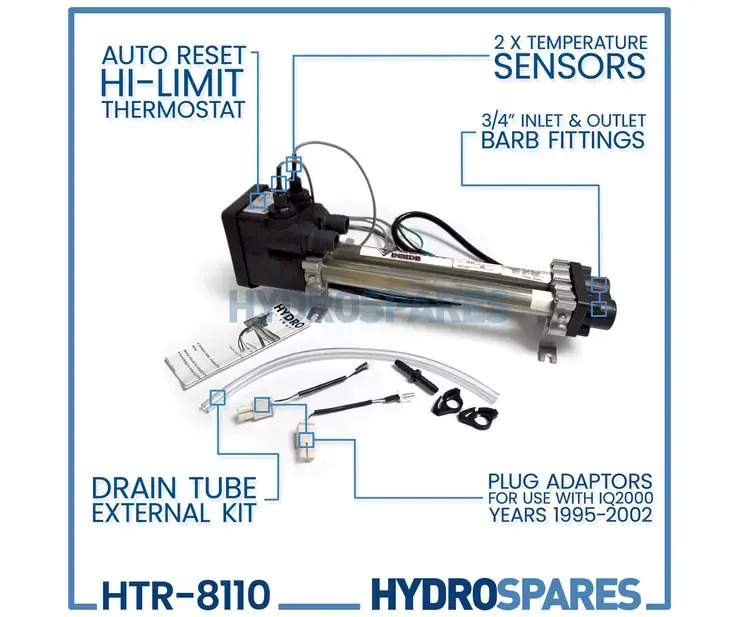

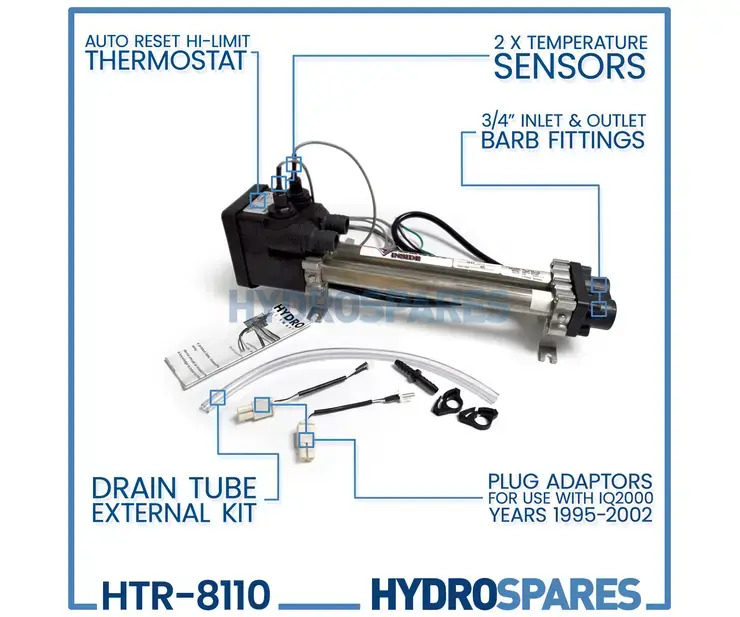

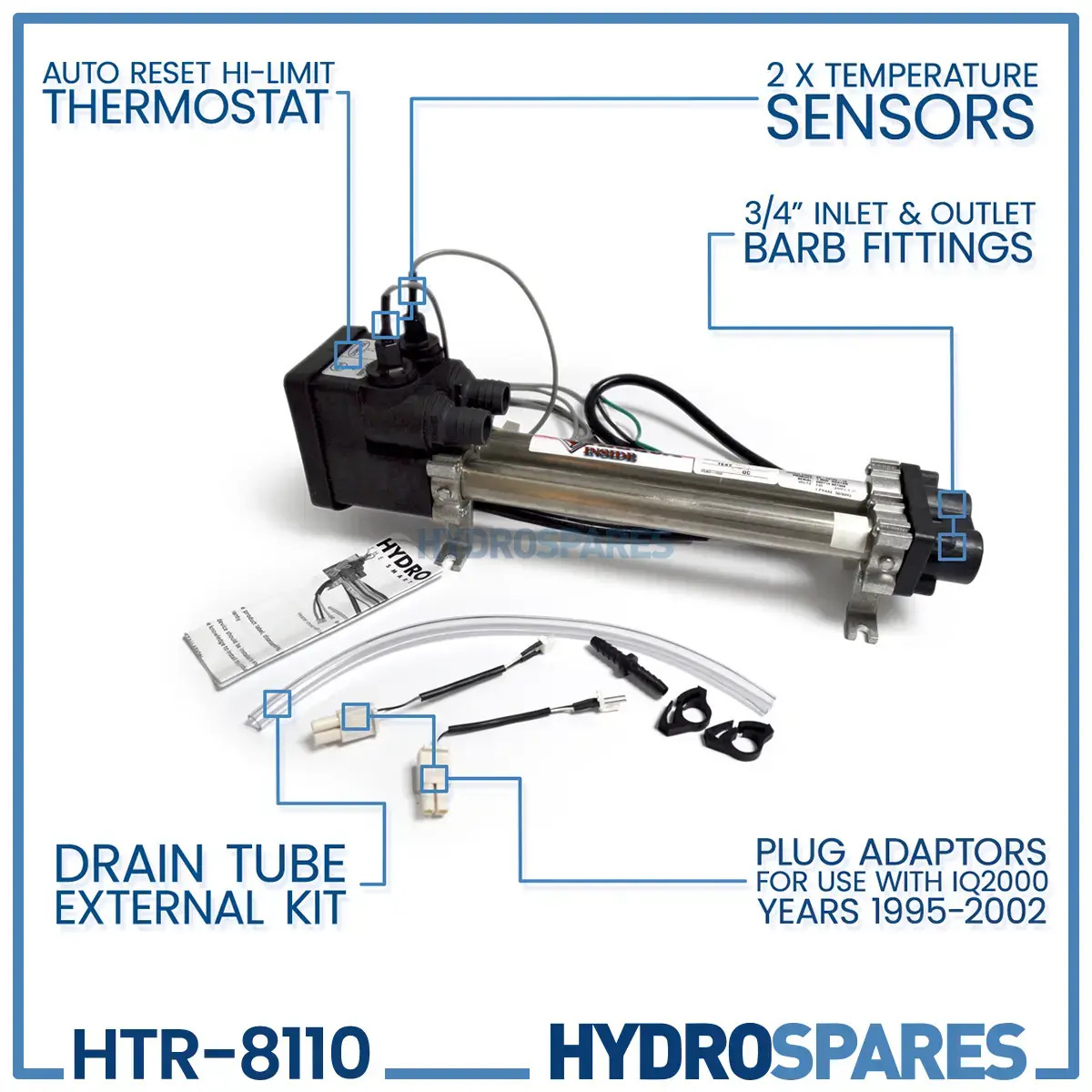

Features

Titanium Heater Element
3/4" Inlet & Outlet Barb Fittings
Drain Tube External Kit

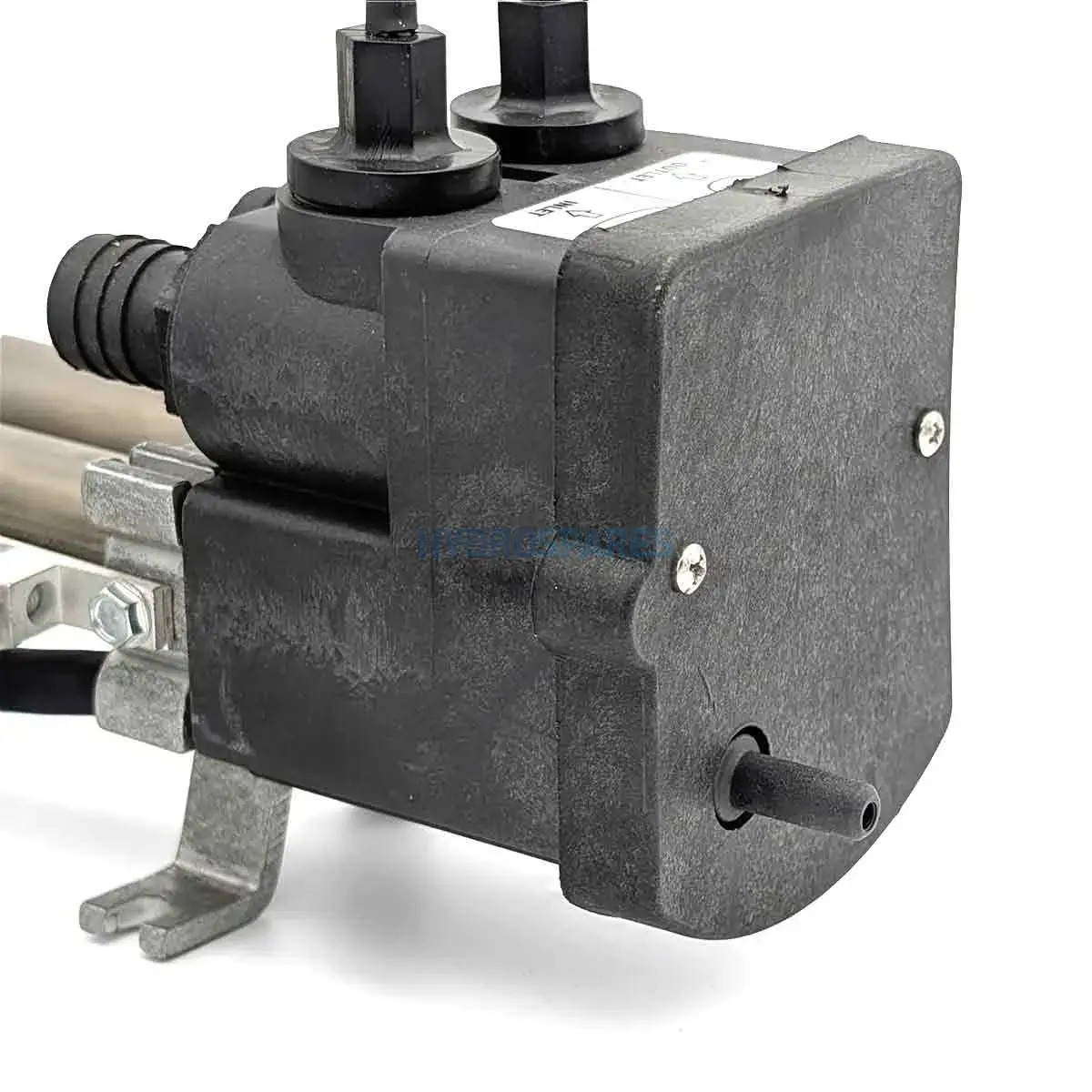

Auto Reset Hi-Limit thermostat
2 x Temperature Sensors

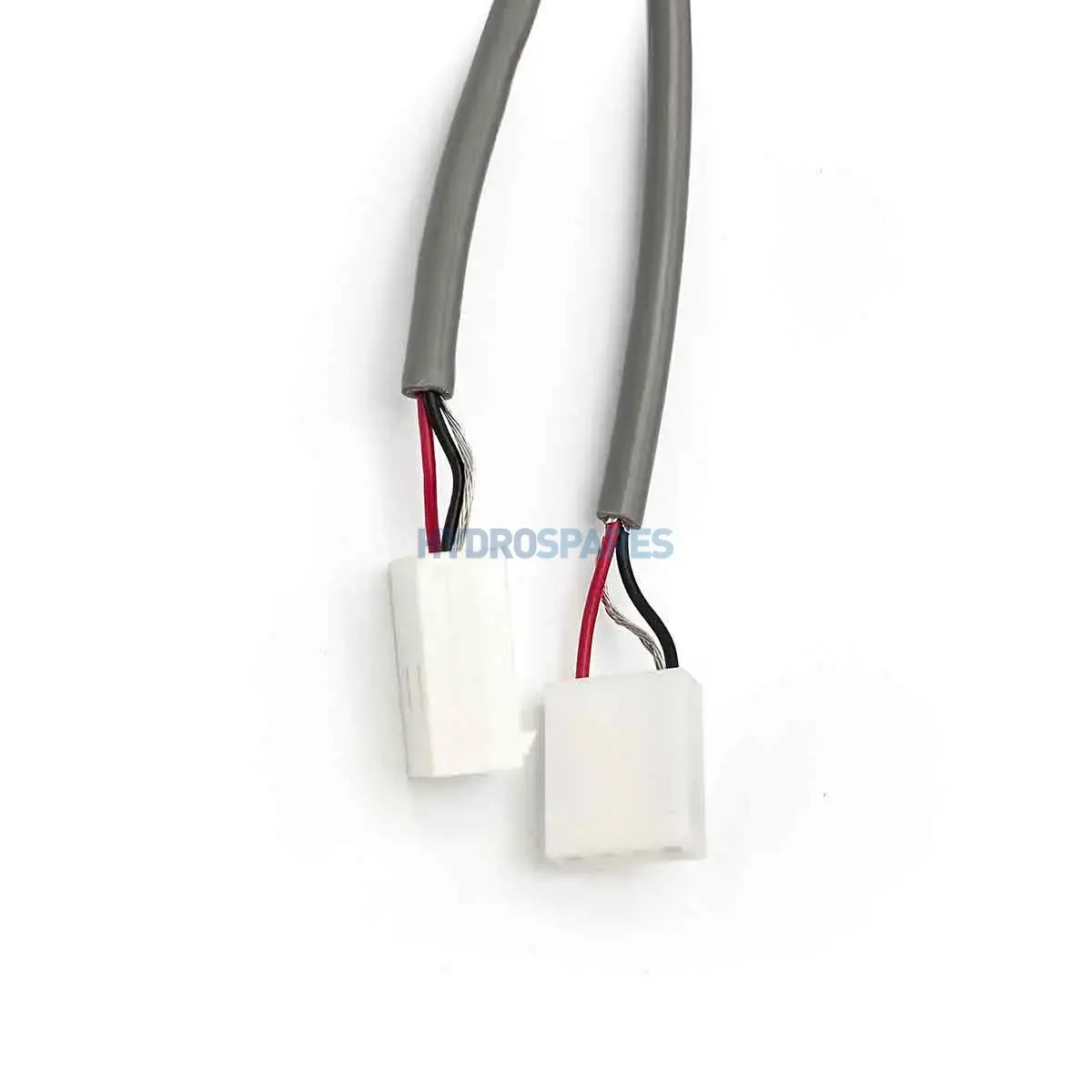

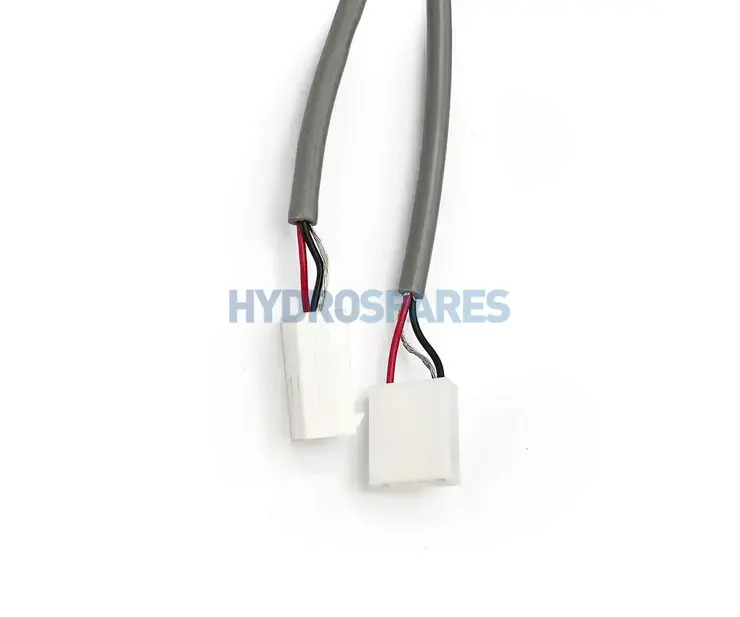

Plug Adaptors for use with IQ2000 Years 1995-2002

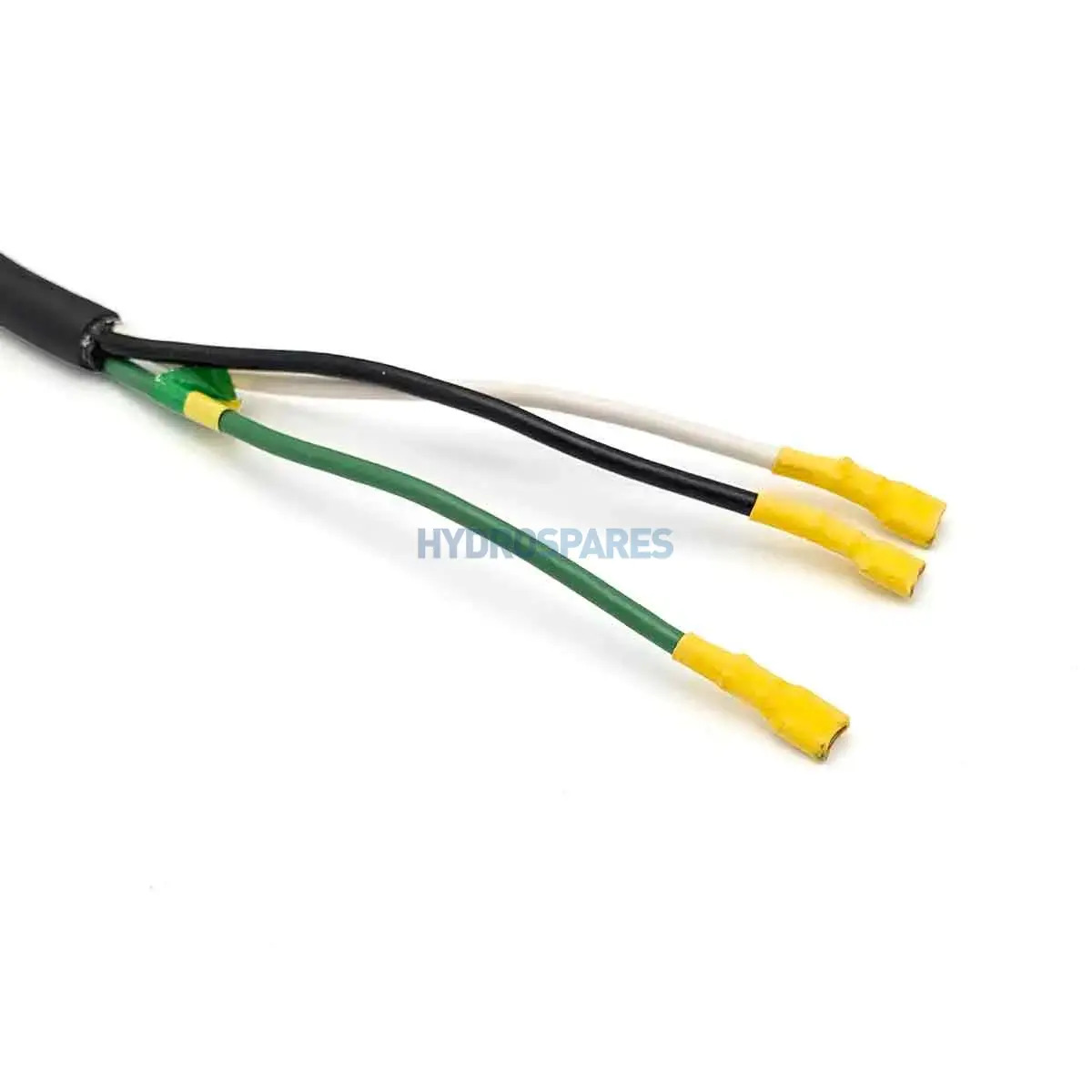

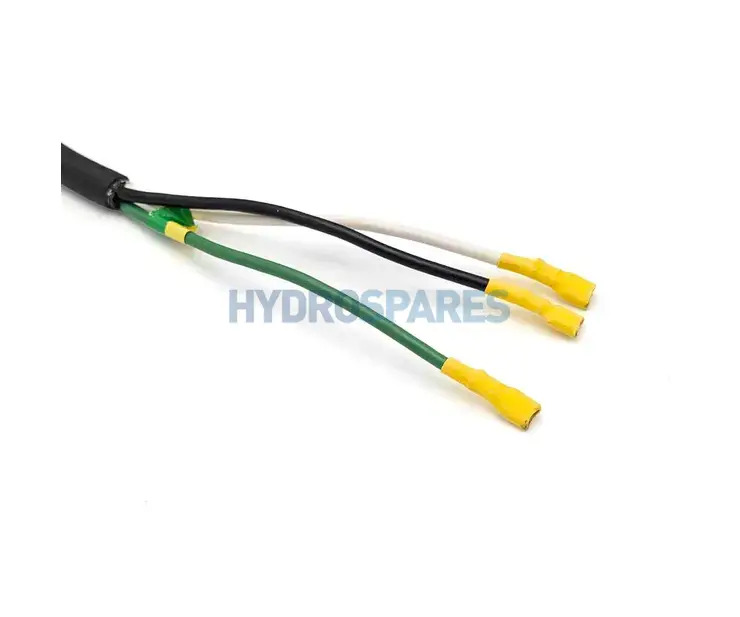

This replacement heater does not have a plug on the end of the power cord like on the 1995-1996 spas.

In most applications, the heater is connected directly inside the spas control box.

If your existing heater plugs in to the bottom of your control box, you may need the appropriate adapter.

Available with or without Flow switch

Without Flow Switch - replaces C3182-1, 73792

With Flow Switch - replaces C3073-1, C3073-KIT, C307301KITTNB, 76229, 72796

See spares tab for replacement sensors and parts

Model Information

Model	Double Barrel Heater
Type	Low Flow
MPN	26-C3182-1S
Element	Titanium
Integrated in Spa Pack	No
Sensor Type(s)	Pressure Switch - Flow,Hi Limit - Probe
Length (includes tails)	412 mm
Plumbing Connection	3/4''

Electrical Info

Power	1.5 kW
Voltage / Hz	230V - 50/60Hz
Amps	6

Element Details

Element Type

Titanium

Compatible Spa Pack

Other

Heater Specification

Dimensions L x W x H

394 x 76 mm

Downloads & Articles

More Info

Dimensions

Length: 15.5"(39.37cm)

Width: 3" (7.62cm)

Important Information:
Our range of Spa Packs must be installed by a competent individual or tradesman, that is trained within the industry. Spa Packs and other computerised equipment are exempt from our returns policy if they have been opened or installed. If the spa pack is suspected as being faulty, it will need to be returned to us within the warranty period and will then be forwarded to the manufacturer for inspection. If deemed to be faulty, we will replace under warranty. If the board is not at fault or is found to have been damaged due to installation, an additional charge will be required to cover the costs of shipping and return.
*Please ensure this is the correct Spa Pack as this item is non-refundable - If you are unsure, please contact our friendly customer service team for advise & support
