Italfarad - Motor Run Capacitor - 5µF
Italfarad - Motor Run Capacitor - 5µF
Product Details
Italfarad - Motor Run Capacitor - 5µF
- Please see product below for individual characteristics.
- For use in running single-phase motors at 50/60Hz
- Self-healing and manufactured using a self-extinguishing plastic case filled with resin
- This gives very good electrical reliability together with high mechanical resistance to shock and vibration
- - All ITALFARAD motor capacitors have VDE approvals in accordance with European Standard EN 60252.
- - Life rating of the operating classes: Class C = 3000 hours, Class B = 10000 hours
- - 4 x Spade connectors
Please Note: The listing picture is for illustrative purposes only. Suppliers may change, or a product labelling may be redesigned. But the rated and connections of the item will always be as titled on the listing.
Technical Specifications
Electrical Info
| Connection Type | Spade |
| Microfarad Rating | 5µF |
| Voltage | 450V |
| Hz | 50/60Hz |
| Microfarad Variation | +/-5% |

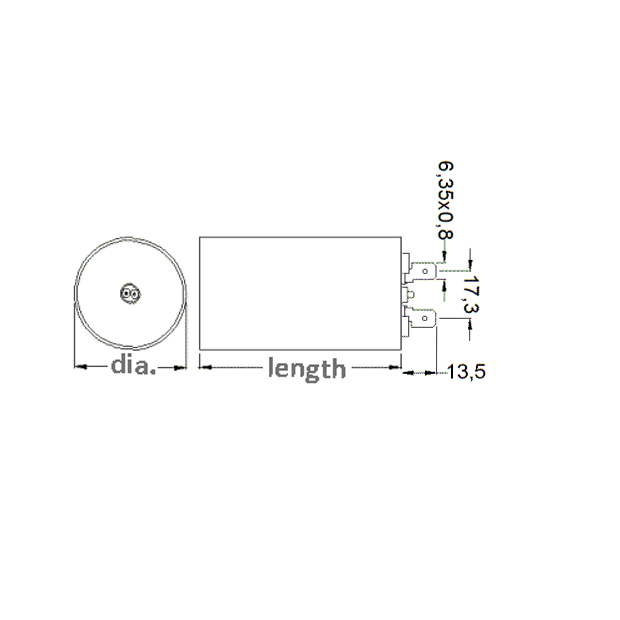

Capacitor Dimentions
| Body Length | 56mm |
| Body Diameter | 28mm |
| Fixing Stud inc.Nut | M6 |
| Overall length inc bolt & spade | 80mm |
Downloads
Reviews (3)
Reviews (3)
With the excellent advice from your staff I was sold this product which was exactly what was required. Thankyou
Easy to fit and delivered as promised
Excellent advice - just what was needed. Should come with guidance on connection. My previous (UK) 50uf was marked -ve and com; this one (made in Italy) isn't. I didn't know that it doesn't matter which way the spade terminals are connected! But, excelllent sales support put me right.
