Balboa Topside Control Panel Guide

Balboa is the world's largest manufacturer of hot tub panels, thanks to its cutting-edge design, development, and state-of-the-art manufacturing facilities. These panels feature patented Piezo electronic switch technology and unique potting methods to prevent moisture damage in harsh environments, ensuring unmatched quality and reliability. Balboa offers a wide range of Spa Topside Panels to suit various needs.

SpaTouch4 Series		Designed for BP Systems

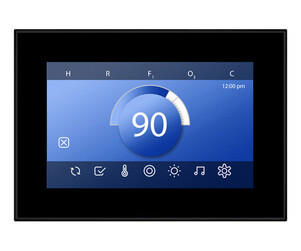

SpaTouch4
	Measurements W - 5.73" (14.58) H - 4.02" (10.22cm) Downloads TBD	Topside (Complete) TOP-11961 Topside (Naked) N/A Overlay Only N/A
SpaTouch3 Series		Designed for BP Systems

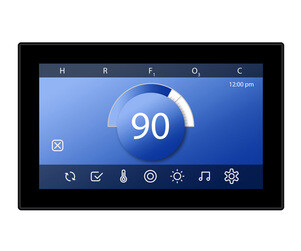

SpaTouch3+
	Measurements W - 7.27" (18.47cm) H - 4.58" (11.63cm) Downloads SpaTouch3+ Cutout Template SpaTouch3+ Installation Guide ENG SpaTouch3+ User Guide ENG	Topside (Complete) TOP-9553 (57256) - Clear Panel Frame TOP-9554 (57257) - Black Panel Frame Topside (Naked) N/A Overlay Only N/A

SpaTouch3
	Measurements W - 5.73" (14.55cm) H - 4.03" (10.24cm) Downloads SpaTouch3 Cutout Template SpaTouch3 Installation Guide ENG SpaTouch3 User Guide ENG	Topside (Complete) TOP-9551 (57256) - Clear Panel Frame TOP-11599 (57257) - Black Panel Frame Topside (Naked) N/A Overlay Only N/A
SpaTouch2 Series		Designed or BP Systems

SpaTouch2 (Trapezoid)
	Measurements W - 7.8" (20cm) H - 4.9" (12cm) Downloads SpaTouch2 Oval Cutout Template SpaTouch2 Oval Installation Guide ENG SpaTouch2 Oval User Guide ENG SpaTouch2 Graphic Overlay Template	Topside (Complete) TOP-9088 (57220-XX) Topside (Naked) 57219-XX Overlay Only 13668

SpaTouch2 (Square)		DISCONTINUED
	Measurements W - 8.7" (22cm) H - 4.8" (12.2cm) Downloads Cutout Template for Square Overlay Graphic Template for Square SpaTouch2 User Guide English SpaTouch2 Installation Guide ENG	Topside (Complete) TOP-9370 (57221-XX) Topside (Naked) (57222-XX) Overlay Only (13750)

SpaTouch2T
	Measurements W - 6.8" (17.3cm) H - 5.7" (10.7cm) Downloads Cutout Template for Square SpaTouch2 User Guide English SpaTouch2 Installation Guide ENG	Topside (Complete) (57221-XX) - Black Panel (57221-XX) - Clear Panel Topside (Naked) N/A Overlay Only N/A
SpaTouch1 Series		Designed for BP Systems

SpaTouch1 (Trapezoid)		DISCONTINUED
	Measurements W - 7.8" (20cm) H - 4.7" (12cm) Downloads Cutout Template for Trapezoid Trapezoid User Guide Trapezoid Overview Trapezoid Menu Manual	Topside (Complete) (50391-XX)* Topside (Naked) N/A Overlay Only 12966

SpaTouch1 (Oval)
	Measurements W-8.8" (22cm) H - 4.9" (12cm) Downloads Cutout Template for Oval Overlay Graphic Template for Oval SpaTouch1 User Guide ENG	Topside (Complete) (50404-XX) Topside (Naked) N/A Overlay Only 12966

SpaTouch1 (Rectangle)
	Measurements W - 5.6" (14cm) H - 4.4" (11cm) Downloads Cutout Template for Rectangle Overlay Graphic Template for Rectangle SpaTouch1 User Guide ENG	Topside (Complete) (50402-XX) Topside(Naked) N/A Overlay Only (12974)
TP Panel Series		Designed for BP Systems

TP900		DISCONTINUED
	Measurements W=10" (25.4Cm) H=4.5" (11.43cm) Downloads User Guide Cutout Template Overlay Graphic Template	Topside (Complete) TOP-11544 (50262-XX) Topside (Naked)* (55994-XX)* Overlay Only TOP-5459 (12513)

TP800		DISCONTINUED
	Measurements W - 10" (25.4cm) H - 3.5" (8.89cm) Downloads Cutout Template for TP800 Overlay Graphic Template P800 User Guide TP800_900 _ English	Topside (Complete) (50261-XX) Topside (Naked)* 50204-XX* Overlay Only 5458 (12513)

TP700
	Measurements W - 10" (25.4cm) H - 3.5" (8.89cm) Downloads Cutout Template for TP Panel 10 Overlay Graphic Template for TP Panel 10 User Guide for TP Panel 10	Topside (Complete) 57279-XX* Panel Balboa TP700 2Jets 57280-XX* Panel Balboa TP700 3Jets Topside (Naked) 57278-XX* Overlay Only 17382 (2 Jets Overlay) 17381 (3 Jets Overlay)

TP600
	Measurements W - 7.1" (18.03cm) H - 3.5" (8.89cm) Downloads Cutout Template for TP600 Simplified Menus: User Guide TP600 Standard Menus: User Guide TP600 (English) Standard Menus: User Guide TP600 (Spanish) Overlay Graphic Template for TP600	Topside (Complete) TOP-5372 (55673-XX* (Jets, Aux, Flip, Warm, Light, Cool)) 50322-XX* (Jets, Microsilk, Flip, Wam, Light, Cool) 50439-XX* (Jets, Aux, Microsilk, Warm, Light, Cool) TOP-8622 (50056-XX* (Jets 1, Jets 2, Flip, Warm, Light, Cool)) 50335-XX* (Jets 1, Jets 2, Aux, Warm, Light, Cool) Topside (Naked) 55676-XX* 56046-XX* (15ft. Cord) Overlay Only 12101 (Jets, Aux, Flip, Warm, Light, Cool) 12740 (Jets, Microsilk, Flip, Wam, Light, Cool) 13142 (Jets, Aux, Microsilk, Warm, Light, Cool) 12198 (Jets 1, Jets 2, Flip, Warm, Light, Cool) 12762 (Jets 1, Jets 2, Aux, Warm, Light, Cool)

TP540
	Measurements W - 6.32" (16.05cm) H - 2.5" (6.35cm) Downloads TBD	Topside (Complete) TBD Topside (Naked) TBD Overlay Only TBD

TP500S
	Measurements W - 7.125" (18.10cm) H - 3.5" (8.89cm) Downloads Cutout Template for TP500S Overlay Graphic Template for TP500S User Guide TP500S _ English User Guide TP500S _ German User Guide TP500S _ Italian	Topside (Complete) 57251-XX* Topside (Naked) 57252-XX* Overlay Only 17204 (Jets, Light, Aux)

TP500
	Measurements W - 6.32" (16.05m) H - 2.25" (5.72cm) Downloads Cutout Template for TP500 Overlay Graphic Template for TP500 User Guide TP500 _ English User Guide TP500 _ English _ Simplified Menus User Guide TP500 _ German User Guide TP500 _ Italian User Guide TP500 _ Spanish User Guide TP500 _ French	Topside (Complete) 57237-XX* Topside (Naked) 57238-XX* Overlay Only 17183 (Jets, Light, Aux)

TP400T /TP400W		DISCONTINUED
	Measurements W - 8.3" (21.08cm) H - 2.5" (6.35cm) Downloads Cutout Template for TP400T/TP400W Simplified Menus: User Guide TP400 Standard Menus: User Guide TP400 (English) Standard Menus: User Guide TP400 (Spanish) Overlay Graphic Template for TP400	Topside (Complete) 50259-XX* 50260-XX* Topside (Naked) 55702-XX* 55701-XX* Overlay Only 12510 (TP400W) (Warm, Cool, Light, Jets) 12511 (TP400T) (Temp, Jets, Light, Aux)

TP260T/TP260W		DISCONTINUED
	Measurements W - 7" (17.78cm) H - 2.1" (5.33cm) Downloads Cutout Template for TP260T/TP260W Overlay Graphics Template for TP260T/TP260W	Topside (Complete) N/A Topside (Naked) N/A Overlay Only N/A

TP240T/TP240W		DISCONTINUED
	Measurements W - 5.3" (13.46cm) H - 1.9" (4.82cm) Downloads Cutout Template for TP240T/TP240W Overlay Graphics Template for TP240T/TP240W	Topside (Complete) N/A Topside (Naked) N/A Overlay Only N/A

TP200T/TP200W
	Measurements W - 4.344" (11.03cm) H - 1.586" (4.02cm) Downloads Cutout Template for TP200T/TP200W Overlay Graphics Template for TP200T/TP200W User Guide TP200_English User Guide TP200 _ English _ Simplified Menus User Guide TP200 _ Spanish User Guide TP200 _ German User Guide TP200 _ French	Topside (Complete) 57282-XX* (TP200T) 57283-XX* (TP200W) Topside (Naked) 57282-XX* (TP200T) 57283-XX* (TP200W) Overlay Only 17325 (TP200T) \| 2 Pump 17374 (TP200W) \| 1 Pump
ML Panel Series		Designed for EL/GL Systems

ML900
	Measurements W - 11.7" (29.71cm) H - 3.2" (8.12cm) Downloads Cutout Template for ML900 ML900 User Guide ML 900 Ref. Card Overlay Graphic Template for ML900	Topside (Complete) 54589-XX* (Time, Warm, Mode/Prog, Cool, Jets 1, Jets 2, Jets 3, Jets 4, Invert, Fiber, Light, Option) 55536-XX* (Time, Warm, Mode/Prog, Cool, Jets 1, Jets 2, Jets 3, Jets 4, Invert, Light, Blower, Jets5) 52654-XX* (Time, Warm, Mode/Prog, Cool, Jets 1, Jets 2, Jets 3, Option, Invert, Fiber, Light, Blower) 55580-XX* (Time, Warm, Mode/Prog, Cool, Jets 1, Jets 2, Jets 3, Option, Invert, Fiber, Light, Blower) Topside (Naked) 52797-XX* Overlay Only 11806 (Time, Warm, Mode/Prog, Cool, Jets 1, Jets 2, Jets 3, Jets 4, Invert, Fiber, Light, Option) 12037 (Time, Warm, Mode/Prog, Cool, Jets 1, Jets 2, Jets 3, Jets 4, Invert, Light, Blower, Jets5) 40026 (Time, Warm, Mode/Prog, Cool, Jets 1, Jets 2, Jets 3, Option, Invert, Fiber, Light, Blower) 12132 (Time, Warm, Mode/Prog, Cool, Jets 1, Jets 2, Jets 3, Option, Invert, Fiber, Light, Blower)

ML700
	Measurements W - 9.8" (24.89cm) H - 3.1" (7.87cm) Downloads Template for ML Panel 2 Overlay Graphic Template for ML Panel 2 User Guide for ML Panel 2	Topside (Complete) 52649-XX* (Time, Warm, Mode/Prog, Cool, Light, Blower, Jets1, Jets2) 55693-XX* (Time, Warm, Mode/Prog, Cool, Light, Jets3, Jets1, Jets2) Topside (Naked) 52798-XX* Overlay Only 11281 (Time, Warm, Mode/Prog, Cool, Light, Blower, Jets1, Jets2) 12016 (Time, Warm, Mode/Prog, Cool, Light, Jets3, Jets1, Jets2) 12053 (Time, Warm, Mode/Prog, Cool, Light, Blower, Jets)

ML554
	Downloads Cutout Template for ML554 ML554 User Guide ML554 Ref. Card	Topside (Complete) N/A Topside (Naked) 55391-XX* Overlay Only N/A

ML553
	Measurements W - 7" (17.78cm) H - 3.4" (8.63cm) Downloads Cutout Template for ML553 ML553 User Guide ML553 Ref. Card	Topside (Complete) N/A Topside (Naked) N/A Overlay Only 55381-XX*

ML551
	Measurements W - 7" (17.78cm) H - 3.4" (8.63cm) Downloads Cutout Template for ML551 ML551 User Guide ML551 Ref. Card	Topside (Complete) 53502-XX* (Light, Mode, Jets1, Jets2, Blower, Warm, Cool) 55304-XX* (Light, Mode, Jets1, Jets2, Jets3, Warm, Cool) 55600-XX* (Light, Mode, Jets1, Jets2, Jets3, Warm, Cool) Topside (Naked) 53503-XX* Overlay Only 11609 (Light, Mode, Jets1, Jets2, Blower, Warm, Cool) 11899 (Light, Mode, Jets1, Jets2, Jets3, Warm, Cool) 12052 (Jets1, Light, Mode, Jets2, Jets3, Jets4, Warm, Cool)

ML550
	Measurements W - 13.7" (34.79cm) H - 2.5" (6.35cm) Downloads Cutout Template for ML550 ML550 User Guide ML550 Ref. Card Overlay Graphic Template for ML550	Topside (Complete) 54726-XX* 55989-XX* Topside (Naked) 53393-XX* Overlay Only 11901 (Cool, Warm, Jets1, Jets2, Jets3, Light, Mode) 11909 (Cool, Warm, Jets1, Jets2, Blower, Light, Mode) 12183 (Cool, Warm, Jets1, Jets2, Jets3, Jets4, Light, Mode)

ML400
	Downloads Cutout Template for ML400 ML400 User Guide	Topside (Complete) 52684-XX* Topside (Naked) 53291-XX* Overlay Only 11345 (Cool, Warm, Jets1, Jets2, Jets3, Jets4, Light, Mode)

ML260
	Measurements W - 7" (17.78cm) H - 2.1" (5.33cm) Downloads Cutout Template for ML260 ML260 User Guide Overlay Graphic Template for ML260	Topside (Complete) 53684-XX* (White Trim) 54270-XX (Grey Trim) Topside (Naked) 54271-XX* Overlay Only 11612 (Jets, Aux, Temp, Light) 11612 (Jets, Aux, Temp, Light)

ML240
	Measurements W - 5.3" (13.46cm) H - 1.9" (4.82cm) Downloads Cutout Template for ML240 Overlay Graphic Template for ML240	Topside (Complete) 53683-XX* (White Trim) 54326-XX* (Grey Trim) Topside (Naked) 54327-XX* Overlay Only 11611 (Jets, Aux, Temp, Light)

ML200
	Downloads W - 4.3" (13.46cm) H - 1.6" (4.06cm) Downloads Cutout Template for ML200 Overlay Graphic Template for ML200	Topside (Complete) 52685-XX* Topside (Naked) 53292-XX* Overlay Only 11344 (Jet, Aux, Temp, Light)

VL Panel Series		Designed for VS/GS Systems

VL802D
	Measurements W - 10.3" (26.16cm) H - 4.6" (11.68cm) Downloads Cutout Template for VL802D Overlay Graphic Template for VL802D	Topside (Complete) 54528-XX* Topside (Naked) 54562-XX* Overlay Only 11789 (Time, Mode, Prog, Warm, Blower, Ligh, Cool, Jets 1, Jets 2)

VL801D
	Downloads Cutout Template for VL802D Overlay Graphic Template for VL802D	Topside (Complete) 54568-XX* Topside (Naked) 54562-XX* Overlay Only 11789 (Time, Mode, Prog, Warm, Blower, Light, Cool, Jets 1, Jets2)

VL703S
	Measurements W - 10.3" (26.16cm) H - 4.6" (11.68cm) Downloads Cutout Template for VL703S	Topside (Complete) N/A Topside (Naked) N/A Overlay Only N/A

VL720S
	Measurements W - 10.3" (26.16cm) 4.6" (11.68cm) Downloads Cutout Template for VL702S	Topside (Complete) 54652-XX* Topside (Naked) 54539-XX* Overlay Only 11790 (Blower, Mode, Jets1, Jets2, Light, Warm, Cool) 11894 (Light, Mode, Jets1, Jets2, Light, Warm, Cool) 11957 (Light, Mode, Jets1, Jets2, Jet3, Warm, Cool) 11956 (Mode, Jets1, Jets2, Warm, Cool) 11960 (Light, Mode, Jets, Warm, Cool) 12437 (Mode, Jets1, Jets2, Light, Warm, Cool)

VL701S
	Measurements W - 7.4" (18.79cm) H - 3.3" (8.38cm) Downloads Cutout Template for VL701S	Topside (Complete) 53189-XX* (Blower, Mode, Jets 1, Jets 2, Light, Warm, Cool) 51247-XX* (Mode, Jets 1, Jets 2, Light, Warm, Cool) 51452-XX* (Mode, Jets, Light, Warm, Cool) 51057-XX* (Mode, Jets, Blower, Light, Warm, Cool) 54170-XX* (Aux, Mode, Jets 1, Jets 2, Light, Warm, Cool) 55390-XX* (Light, Mode, Jets 1, Jets 2, Jet 3, Warm, Cool) Topside (Naked) 54112-XX* Overlay Only 10430 (Blower, Mode, Jets1, Jets2, Light, Warm, Cool) 10402 (Mode, Jets1, Jets2, Light, Warm, Cool) 10429 (Mode, Jets, Light, Warm, Cool) 10328 (Mode, Jets, Blower, Light, Warm, Cool) 11159 (Aux, Mode, Jets1, Jets2, Light, Warm, Cool) 11984 (Light, Mode, Jets1, Jets2, Jet3, Warm, Cool)

VL700S
	Measurements W - 9.8" (24.89cm) H - 3.1" (7.87cm) Downloads Cutout Template for VL700S Overlay Graphic Template for VL700S	Topside (Complete) 53811-XX* 54716-XX* Topside (Naked) N/A Overlay Only 11688 (Warm, Mode, Cool, Light, Blower, Jets1, Jets2) 11756 (Warm, Mode, Cool, Light, Jets1, Jets2) 11892 (Warm, Mode, Cool, Aux, Light, Jets1, Jets2)

VL602S
Note: VL620S is compatible with the VS/GS 503/504/514SZ Systems. No Light LED.	Measurements W - 9.8" (24.89cm) H - 3.1" (7.78cm) Downloads Cutout Template for VL620S Overlay Graphic Template for VL620S	Topside (Complete) 50055-XX* (Jets 1, Jets 2, Light, Warm, Mode, Cool) Topside (Naked) 55582-XX* Overlay Only 12220 (Jets 1, Jets 2, Light, Warm, Mode, Cool)

VL600S
	Measurements W - 7" (17.78cm) H - 3.4" (8.63cm) Downloads Cutout Template for VL600S Overlay Graphic Template for VL600S	Topside (Complete) 54547-XX* (Jets, Blower, Light, Warm, Mode, Cool) 54548-XX* (Jets1, Jets2, Light, Warm, Mode, Cool) 54681-XX* 11877 (Jets, Aux, Light, Warm, Mode, Cool) Topside (Naked) 54546-XX* Overlay Only 11773 (Jets, Blower, Light, Warm, Mode, Cool) 11774 (Jets1, Jets2, Light, Warm, Mode, Cool) 11877 (Jets, Aux, Light, Warm, Mode, Cool)

VL406U
	Measurements W - 7" (17.78cm) H - 3.4" (8.63cm) Downloads Cutout Template for VL406U Overlay Graphic Template for VL406U	Topside (Complete) 55350-XX(Jets, Light, Warm, Cool) 53272-XX (10ft Cable) Topside (Naked) 55417-XX* 53271-XX* (10Ft Cable) Overlay Only 11947 (Jets, Light, Warm, Cool)

VL406T
	Measurements W - 7" (17.78cm) H - 3.4" (8.63cm) Downloads Cutout Template for VL406T Overlay Graphic Template for VL406T	Topside (Complete) 55349-XX* (Jets, Blower, Light, Temp) 55570-XX* (Jets1, Jets2, Light, Temp) 50217-XX* (Jets, Light, Temp) Topside (Naked) 55413-XX* 50195-XX* (18Ft Cable) 50210-XX* (10Ft Cable) 50222-XX* (25Ft Cable) Overlay Only 11946 (Jets, Blower, Light, Temp) 12051 (Jets1, Jets2, Light, Temp) 12438 (Jets, Light, Temp)

VL404
	Measurements W - 7.3" (18.54cm) H - 3.2" (8.13cm) Downloads Cutout Template for VL404 Overlay Graphic Template for VL404	Topside (Complete) 51223-XX* 51248-XX* 51225-XX* Topside (Naked) 52825-XX* Overlay Only 11946 (Jets, Blower, Light, Temp) 12051 (Jets1, Jets2, Light, Temp) 12438 (Jets, Light, Temp)

VL402
	Measurements W - 7.3" (18.54cm) H - 3.2" (8.13cm) Downloads Cutout Template for VL402 Overlay Graphic Template for VL402	Topside (Complete) 54093-XX* 54100-XX* 54107-XX* Topside (Naked) 51876-XX* Overlay Only 10668 (Blower, Light, Jets, Set) 10721 (Light, Jets, Set) 10764 (Jet2, Light, Jet1, Set)

VL401
	Measurements W - 6.3" (16cm) H - 2.2" (5.58cm) Downloads Cutout Template for VL401 Overlay Graphic Template for VL401 User Guide for VL401	Topside (Complete) 54094-XX* 54135-XX* 54251-XX* 54665-XX* Topside (Naked) 52424-XX* Overlay Only 10669 (Blower, Jets, Temp, Light) 10839 (Jets, Temp, Light) 11671 (Jets, Jets, Temp, Light) 11885 (Jets, Light, Cool, Warm)

VL400
	Measurements W - 7.5" (19.05cm) H - 2.3" (5.84cm) Downloads Cutout Template for VL400	Topside (Complete) 55129-XX* 50176-XX* 50175-XX* Topside (Naked) 55130-XX* Overlay Only 11822 (Light, Temp, Jets, Aux) 12237 (Light, Temp, Jets, Jets) 12238 (Light, Temp, Jets)

VL260
	Measurements W - 6.3" (16cm) H - 2.2" (5.58cm) Downloads Cutout Templatefor VL260 Overlay Graphic Template for VL260	Topside (Complete) 54268-XX* (Clear Trim) 53645-XX* (Gray Trim) 53777-XX* (10Ft Cable, Gray Trim) 53566-XX* (White Trim) 54685-XX* (Gray Trim) 55051-XX* (Clear Trim) 55050-XX* (Gray Trim) 55049-XX* (White Trim) 55081-XX* (White Trim) 55559-XX* (Gray Trim) Topside (Naked) 50063-XX* (Clear, 25ft Cable) 53637-XX* (White Trim) 53646-XX* (Gray Trim) 53999-XX* (Clear) Overlay Only 11521 (Blower, Jets, Temp, Light) 11521 (Blower, Jets, Temp, Light) 11521 (Blower, Jets, Temp, Light) 11521 (Blower, Jets, Temp, Light) 11724 (Jets, Temp, Light) 11725 (Jets, Jets, Temp, Light) 11725 (Jets, Jets, Temp, Light) 11725 (Jets, Jets, Temp, Light) 11746 (Jets, Light, Cool, Warm) 12050 (Aux, Jets, Temp, Light)

VL240
	Measurements W - 5.3" (13.46cm) H - 1.9" (4.82cm) Downloads Cutout Template for VL240 Overlay Graphic Template for VL240	Topside (Complete) 53646-XX* (Gray Trim) 53565-XX* (White Trim) 55456-XX* (Gray Trim) 55080-XX* (White Trim) Topside (Naked) 53636-XX* (White Trim 53644-XX* (Gray Trim) Overlay Only 11520 (Blower, Jets, Temp, Light) 11520 (Blower, Jets, Temp, Light) 11745 (Jets, Light, Cool, Warm) 11745 (Jets, Light, Cool, Warm) 11764 (Jets2, Jets1, Temp, Light) 11765 (Jets, Temp, Light)

VL200
	Measurements W - 4.3" (10.92cm) H - 1.6" (4.82cm) Downloads Cutout Template for VL200 Overlay Graphic Template for VL200	Topside (Complete) 52144-XX* (White Trim) 52487-XX* (White Trim) 55563-XX* (White Trim) 55431-XX* (White Trim, 10 ft Cable) Topside (Naked) 53676-XX* (White Trim) 54252-XX* (10 Ft Cable) 55472-XX* (Clear Trim) Overlay Only* 11095 (Blower, Jets, Temp, Light) 11219 (Jets, Temp, Light) 11852 (Jets, Light, Cool, Warm) 11219 (Jets, Temp, Light)
