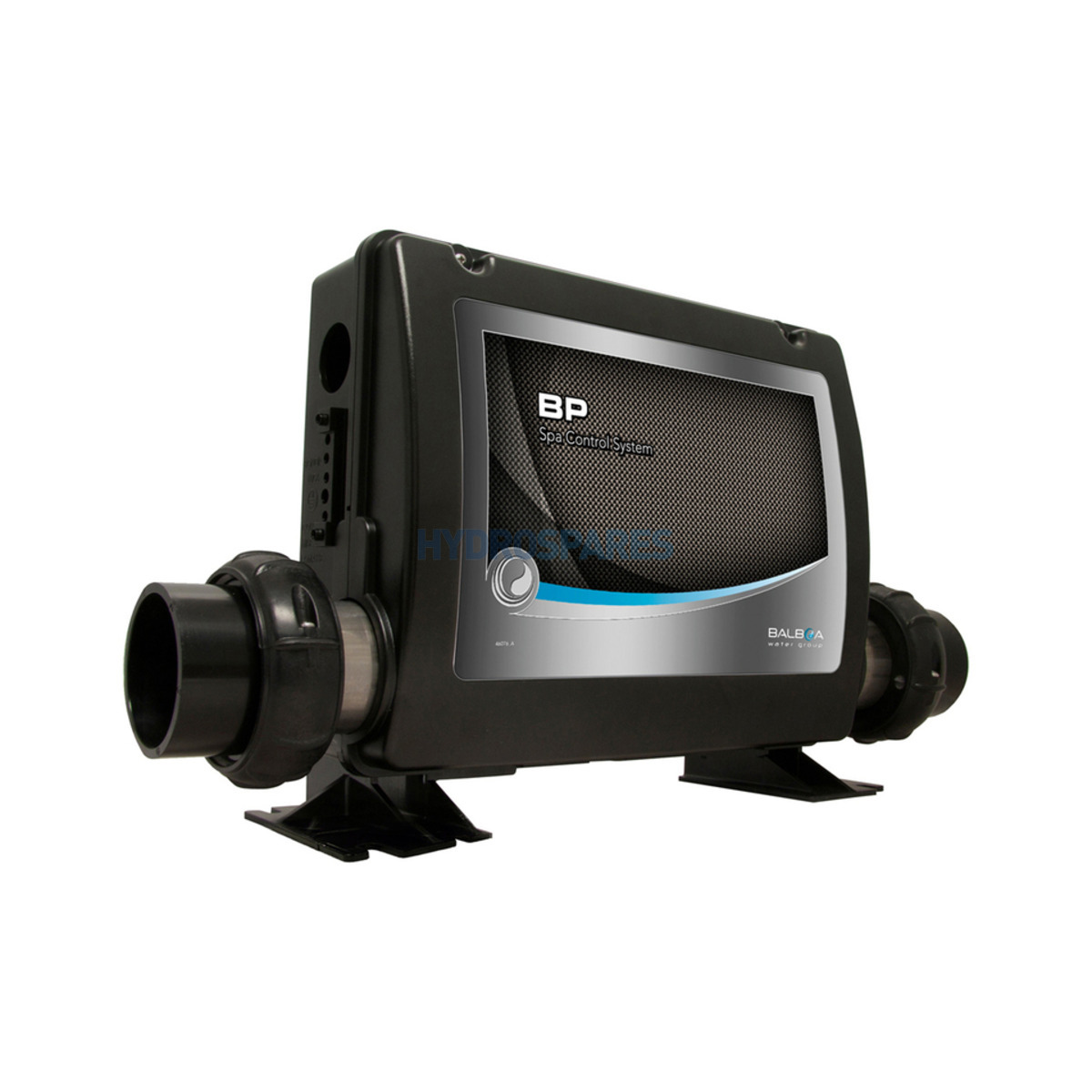

The Balboa BP21P4BC Spa & Swim Spa Control Pack is a high-performance system built for demanding applications, including swim spas and large hot tubs. Unlike standard spa packs, this model supports up to 4 pumps, delivering powerful water flow essential for swim spa current generation and multi-zone jet control.
Equipped with a 3kW Incoloy 800 heater, the BP21P4BC ensures precise and efficient heating. It is designed for versatile power configurations, operating on 230V single-phase (32A) or 400V three-phase (3x16A), making it suitable for various electrical setups.
This unique 4-pump capability allows users to customize their spa experience, whether for hydrotherapy, relaxation, or fitness applications in swim spas.
WiFi Ready: Pair this control pack with the Balboa WiFi Receiver Module (sold separately) to enable remote access through the Balboa Worldwide App (BWA) on iPhone and Android. Control your spa’s settings from anywhere, ensuring it’s heated and ready whenever you need it.
Key Specifications:
- Model: BP21P4BC (56625)
- Heater: 3kW Incoloy 800
- Power Options: 230V (Single Phase) / 400V (Three Phase)
- Pump Support: Up to 4 pumps + Blower + Circulation Pump
- WiFi Compatibility: WiFi-ready with the optional Balboa WiFi Receiver Module
- Control Panels: Compatible with TP800 & TP900
- Filtration Cycles: Programmable + Polling
- Ozone Control: Slaved to circ pump (Setups 1-5) / Independent (Setups 6-8)
This high-performance control system is an industry favorite for swim spas and large hot tubs, providing unmatched power, flexibility, and reliability.
